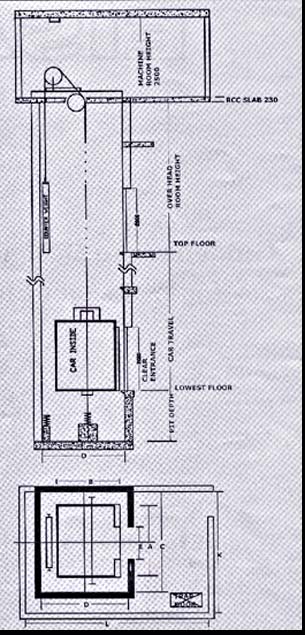

Layout Drawing for EISA Passenger Lift

Well Enclosure:
230 Brick/150 RCC

Well Dimensions are finished with Plaster & must be in Plumb.

Above G & 7 Floors for every additional floor or a part thereof, add 100 mm in Shaft Dimensions to take care of out of Plumbness
